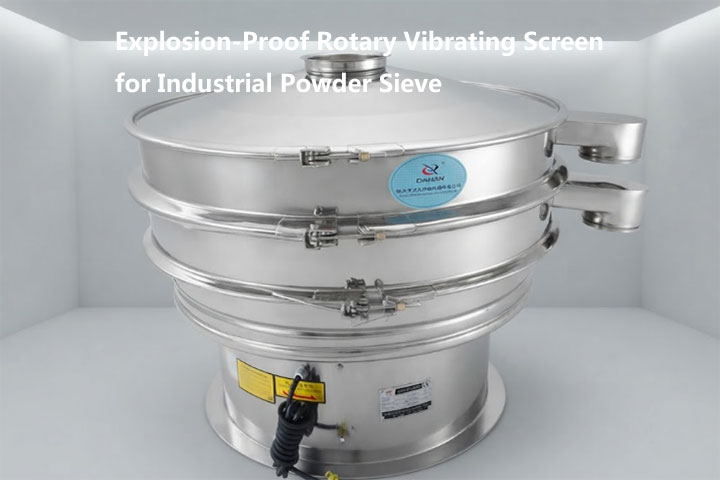

What is an Explosion-Proof Vibrating Screen?
An explosion-proof vibrating screen is a specialized industrial screening machine engineered specifically for hazardous environments containing flammable gases, combustible dusts, or explosive chemical atmospheres. Unlike standard industrial separators, this anti-static industrial separator integrates a fully sealed structure with certified flameproof electrical systems。
Its core function is to achieve precise material sizing, grading, or impurity removal while effectively minimizing and preventing potential ignition sources---such as mechanical sparks, electrical arcs, or static electricity buildups---that could trigger a catastrophic industrial explosion. In high-risk processing lines, it serves as the ultimate line of defense for product purity and plant safety.
Key Technical Specifications & Data Table
To assist plant engineers and procurement managers with rapid equipment selection, the standard operational metrics of our industrial explosion-proof screening systems are structured below:
| Technical Parameter | Standard Specification Options | Custom Engineering Range |
|---|---|---|
| Screen Diameter / Size | 600mm to 1800mm (Round) / Custom Rectangular | Up to 2500mm or Multi-deck sizing |
| Deck / Layer Quantity | 1 to 5 Decks (Multi-fraction separation) | Tailored to exact particle grading needs |
| Motor Power | 0.18 kW to 5.5 kW (Flameproof certified) | Heavy-duty customized centrifugal force |
| Excitation Frequency | 1440 / 2880 RPM (50Hz / 60Hz compatible) | Variable frequency drive (VFD) compatible |
| Wetted Material | SS304 / SS316L Stainless Steel | Carbon steel with special anti-corrosive coating |
| Ingress Protection (IP) | IP66 / IP67 Dust-tight and waterproof | Enhanced washdown capabilities |
Standard Voltage Options: 220V, 380V, 415V, 460V (3-Phase, 50Hz/60Hz); global custom power configurations available upon request.
Certified Safety & Explosion-Proof Design Features
When dealing with combustible fine powders or volatile chemicals, safety compliance is non-negotiable. Our manufacturing process incorporates rigorous multi-layer protection standards:

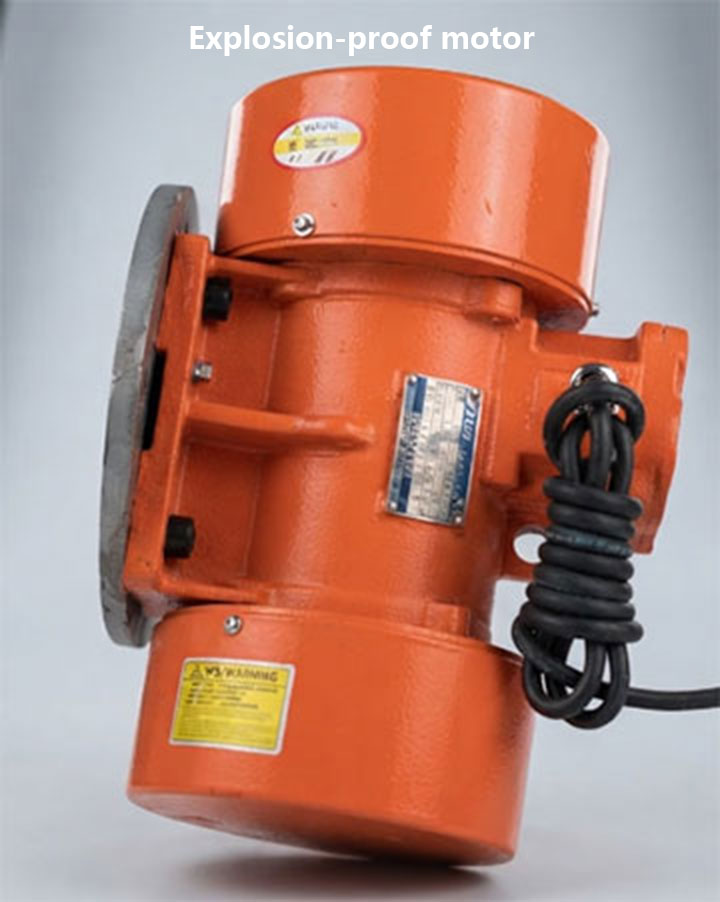

Flameproof Vibrating Motors: Equipped with certified explosion-proof motors bearing Ex d IIB T4 / Ex d IIC T4 or ATEX / IECEx compliance. The heavy-duty cast housing is engineered to contain internal sparks or arcs safely without igniting the surrounding hazardous atmosphere.
Anti-Static & Spark-Free Engineering: All structural components of this anti-static industrial separator feature comprehensive grounding connections to safely dissipate/discharge static charges generated by high-speed particle friction.

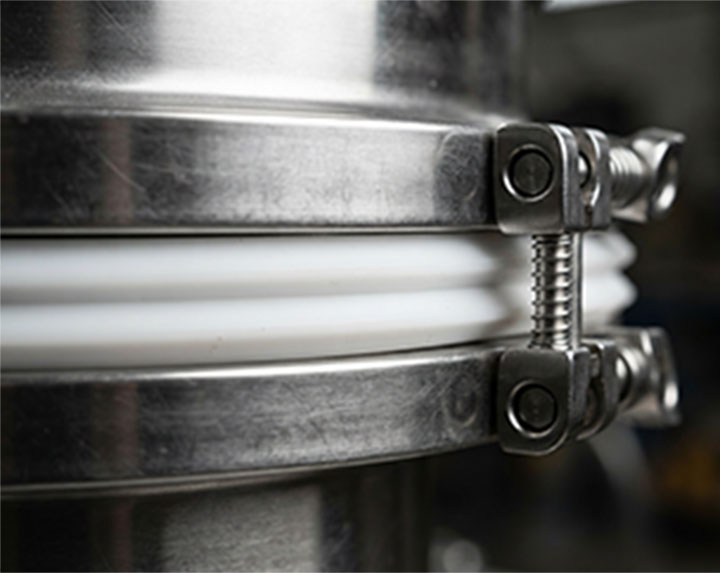

Airtight Sealing System: High-density food-grade silicone or rubber gaskets combined with quick-release clamping bands prevent hazardous dust leakage, maintaining a zero-emission working environment.
Available Types & Technical Comparison of Explosion-Proof Screening Equipment
Different industrial processes require distinct mechanical movement trajectories. We provide three primary structural variants tailored to specific operational demands, along with key selection factors frequently concerned by plant engineers:

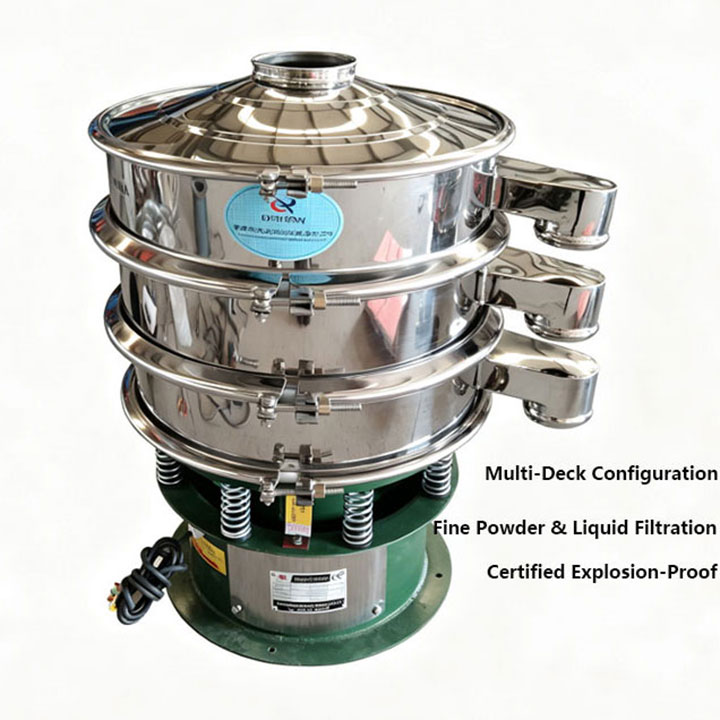

Explosion-Proof Rotary Vibrating Screen (3-D Vertical Motion)
- Equipment Overview: Designed with a multi-deck configuration (1 to 5 decks) to optimize fine powder classification, safety screening, and liquid filtration down to 500 mesh.
- Core Technical Specifications: Driven by certified explosion-proof vertical motors combined with comprehensive anti-static seals to ensure absolute safety in hazardous environments.

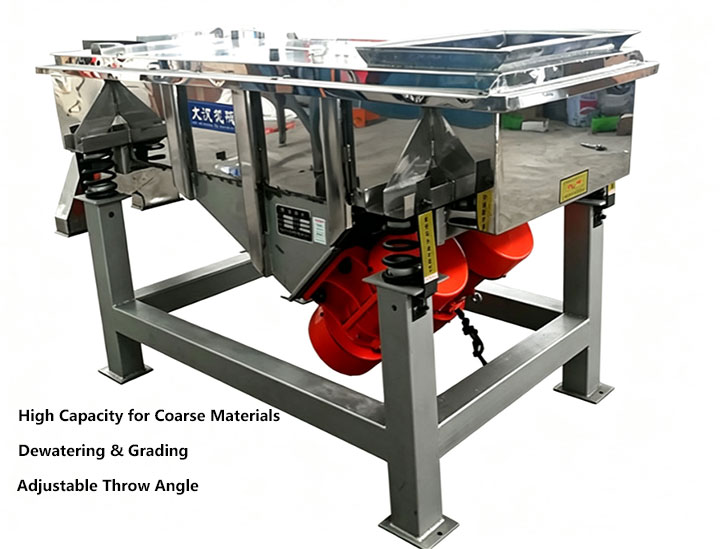

Explosion-Proof Linear Vibrating Screen (High-Capacity Motion)
- Equipment Overview: Built with a heavy-duty design featuring dual horizontal explosion-proof motors, engineered specifically for coarse particle sizing, dewatering, and high-throughput grading.
- Core Technical Specifications: Offers an adjustable throwing angle to maximize output and handle heavy industrial material loads efficiently.

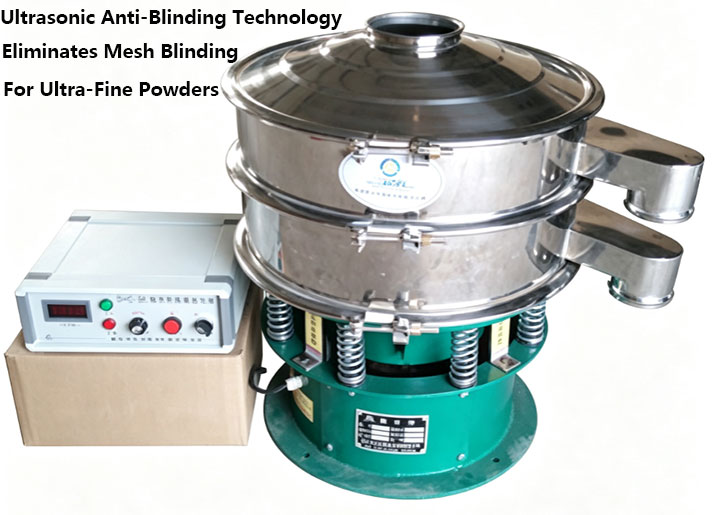

Explosion-Proof Ultrasonic Vibrating Screen (Rotary + High-Frequency Waves)
- Equipment Overview: Integrates an explosion-proof ultrasonic transducer system to eliminate mesh blinding completely when processing sticky, ultra-fine, or electrostatic-prone powders.
- Core Technical Specifications: Significantly increases processing throughput for powders finer than 400 mesh by breaking surface tension and keeping fine apertures unblocked continuously.
Advanced Mesh Options & Anti-Blinding Solutions
Screen blinding (mesh clogging) severely reduces production efficiency, especially in closed, high-humidity explosion-proof environments. We offer advanced structural solutions:

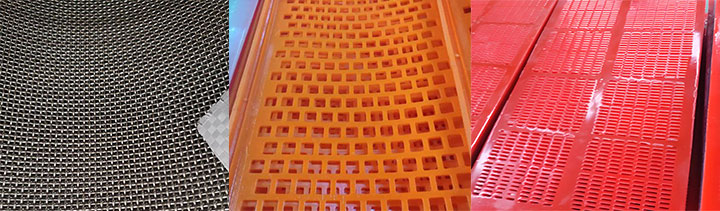

Versatile Screen Media：Compatible with woven stainless steel wire mesh, heavy-duty perforated metal plates, and high-wear polyurethane (PU) or rubber panels.

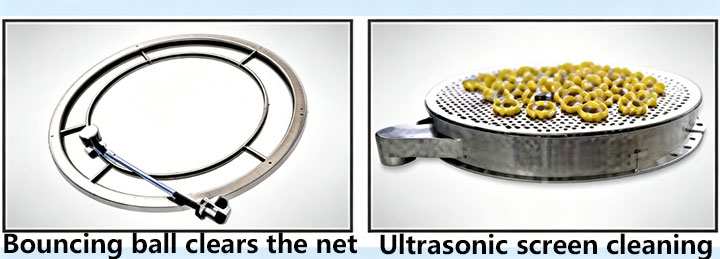

Intelligent Anti-Blinding Mechanisms
- Bouncing Ball Systems: Food-grade silicone bouncing balls moving beneath the screen deck to clear near-size particles mechanically.
- Explosion-Proof Ultrasonic Systems: Transducer-driven high-frequency waves that break surface tension, ensuring continuous, high-efficiency throughput for powders finer than 400 mesh without damaging the mesh structure.
Target Industries & Hazardous Applications
Our explosion-proof screening machines are extensively deployed across high-risk manufacturing sectors globally, including:
- Chemical & Petrochemical Processing: Handling combustible resins, plastic masterbatches, pigments, and fine chemical powders.
- New Energy & Lithium Battery Materials: Utilizing a specialized lithium powder explosion-proof sieve for precision screening of cathode and anode materials (such as graphite, lithium cobalt oxide) where dust explosion risks are critically high.
- Pharmaceuticals & Intermediates: Processing active pharmaceutical ingredients (APIs) and excipients under strictly sealed conditions.
- Food & Grain Milling: De-dusting flour, starch, sugar powders, and additives to prevent dust cloud explosions in grain silos.
Custom Engineering & Material Testing Services
Every production line possesses unique factory layouts and material flow dynamics. Beyond standard models, we provide comprehensive engineering flexibility:
- Non-Standard Customization: Tailored modifications including specialized inlet/outlet chute orientations, mobile cart mountings, specialized quick-clean sanitary finishes, and reinforced multi-deck configurations.
- Complimentary Material Testing Facility: Unsure about your powder's flowability or mesh selection? We invite clients to send material samples to our testing laboratory. Our engineers will run practical screening trials and deliver a comprehensive optimization and selection report prior to purchase.
Frequently Asked Questions (FAQ)
Q1: What certifications do your explosion-proof vibrating screens have?
Answer: Our explosion-proof units feature internationally recognized safety credentials, including ATEX and IECEx certified flameproof motors and electrical enclosures, ensuring full compliance with global industrial safety regulations.
Q2: Can the explosion-proof screen be customized for our specific production line?
Answer: Yes. We specialize in non-standard engineering. We can customize the voltage, number of decks (1 to 5 layers), discharge port angles, and material grades (SS304/SS316L) to seamlessly integrate into your existing plant layout.
Q3: How do you prevent mesh blinding for fine powders in explosive environments?
Answer: We integrate specialized mechanical bouncing balls or certified explosion-proof ultrasonic cleaning systems. These technologies continuously agitate the mesh wires, preventing fine powders from clogging the apertures during continuous operation.
Q4: What is the delivery time and how is the equipment packaged?
Answer: Standard models are typically ready for dispatch within 7 to 10 working days, while fully customized units require 15 to 25 days. All machines are securely packed in export-standard, fumigation-free plywood crates featuring internal moisture-barrier and shock-absorbing protections.
