Ultrasonic Automatic Screening Machine: High-Precision Sifting for Fine Powders (20-500 Mesh)
Wednesday July-15 2026 16:40:33
Many industries face mesh blinding as the primary obstacle when processing fine powders. When selecting automated screening equipment, producers prioritize solutions that minimize screen blockage and maximize throughput. This article explores how ultrasonic resonance technology achieves stable, high-precision screening for materials ranging from 20 to 500 mesh.

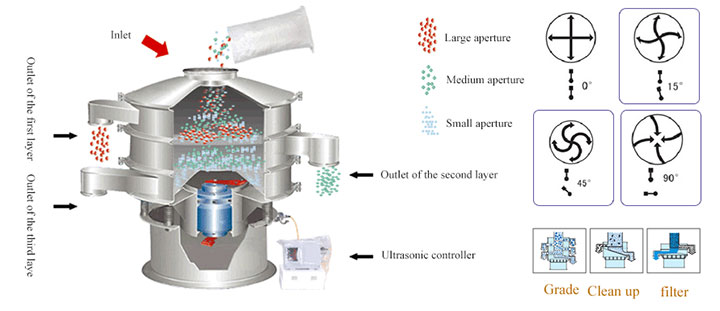

Functional Mechanism of the Ultrasonic Screening System

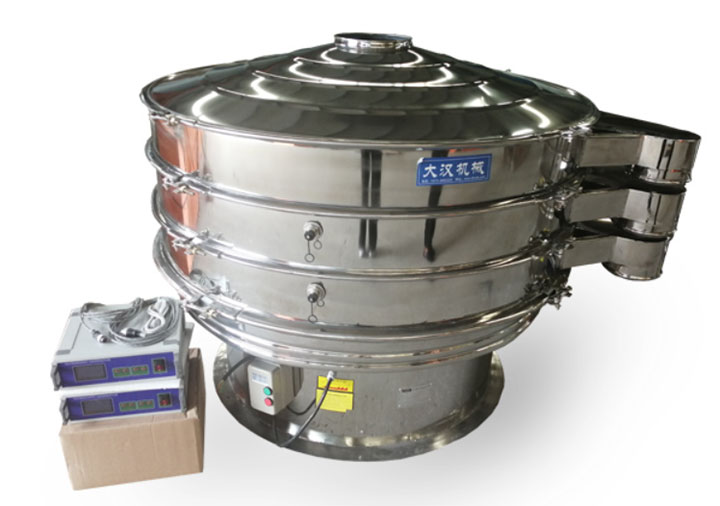

For manufacturers handling powders ranging from 20 to 500 mesh, the core challenge is screen surface blinding rather than mere material transport. This Ultrasonic Automatic Screening Machine employs high-frequency resonance to maintain open apertures, allowing even difficult-to-sieve substances to flow through the mesh with ease.

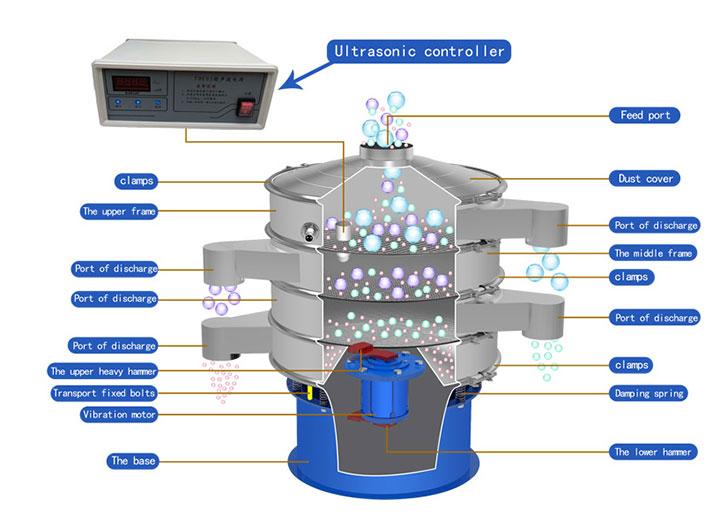

The Ultrasonic Automatic Screening Machine incorporates a high-frequency transducer system, converting low-frequency mechanical vibration into high-frequency ultrasonic energy. This process disrupts the surface tension of fine powders and reduces internal friction, leading to a marked decrease in the frequency of screen blinding.
Core Performance Standards & Technical Specifications
The following specifications detail the operational capabilities of the ultrasonic screening system. These parameters are designed to accommodate a diverse range of industrial requirements and application environments.
| Technical Parameter | Specification / Data |
|---|---|
| Mesh Range (Screen Specification) | 60–635 Mesh (Model dependent) |
| Input Power Supply | 380V/50Hz (Vibration) & 220V/50Hz (Ultrasonic) |
| Transducer Configuration | Internal / External options available |
| Ultrasonic Frequency | 38 kHz |
| Operating Modes | Continuous (1–9 levels) & Pulse (2 modes) |
| Motor Power | 0.18 kW – 3.0 kW (Model dependent) |
Solving Screen Blinding: The Ultrasonic Advantage for Fine Powders
When processing fine powders (20–500 mesh), electrostatic attraction, moisture content, and particle agglomeration frequently lead to screen blinding. Traditional mechanical vibration often fails to maintain clear apertures, as the energy is insufficient to break the cohesive bonds of micro-fine particles.
The ultrasonic system applies high-frequency vibration directly to the screen mesh, altering the state of contact between the material and the screen. This resonance technology provides critical operational advantages:
Agglomerates Dispersion: High-frequency energy breaks down static-charged or clumped particles, ensuring they pass through the mesh as individual units.
Aperture Clearance: The sustained ultrasonic oscillation reduces the accumulation of fine particles at mesh openings, maintaining stable throughput.
High-Precision Separation: For materials exceeding 400 mesh, this system achieves accurate particle grading and reduces oversize contamination in the final output.
Material Integrity: Because the ultrasonic energy is directed at the screen frame rather than the material itself, this process lowers friction-induced heat, preserving the physical characteristics of sensitive substances.
Industry Applications: Tailored Solutions for Demanding Materials
The versatility of the ultrasonic screening system makes it a critical component across various industrial sectors where precision and material integrity are non-negotiable.
Battery Material Processing: In the production of cathode and anode materials, particle size consistency is vital. The ultrasonic system ensures uniform distribution while processing highly sensitive materials.
Pharmaceutical Production: Our equipment maintains the integrity of delicate pharmaceutical ingredients. By lowering friction-induced heat, it ensures that sensitive compounds remain stable during the separation process.
Fine Chemicals & Pigments: Fine pigments often present challenges with electrostatic clumping. The ultrasonic system effectively disperses these particles, resulting in a superior final product.
Request a Custom Screening Solution & Quote
Are you looking to optimize your production line with high-precision screening technology? Our technical team is available to discuss the specific challenges related to your material characteristics and provide a tailored configuration for your production requirements.
Analyze Material Characteristics: We are ready to examine your particle size and flow requirements to identify the best approach.
Request a Technical Quote: Receive professional recommendations and pricing based on your specific throughput needs.
Customized Configurations: We provide solutions ranging from laboratory-scale units to large-scale industrial systems.
